Specifications

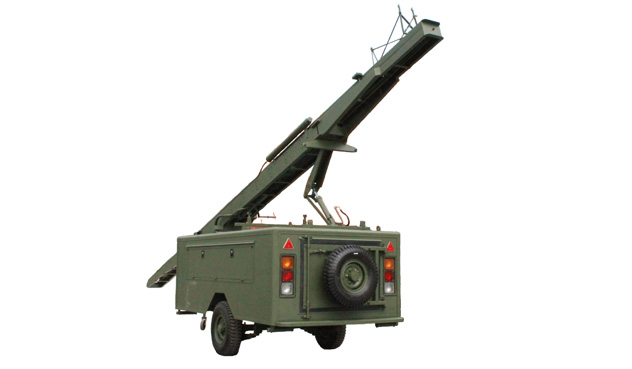

foldable uav / target drone
Hydraulic Pneumatic System
Rail Length:
10 Meters
Operating Pressure:
100-120 Bar
Drone / Uav Mass Tow:
50kgs
Maximum Launch Velocity:
23m/s
Two Separate Hydraulic Power Unit For Adjust Angle And Launch Accumulator Unit
Specifications
Width:
2,010mm
Height:
1,900mm
Weight:
1,500kgs
Rail Length:
10m
Operating Pressure:
100-120Bar
Max Takeoff Weight:
60kgs
Launch Velocity:
23m/s
Power:
24V Battery
Two seperate Hydraulic power unit for adjust angle and launch. One accumulator tank.
Four Support Manual Jack, Foldable for Store and Transport, Operate by 1 Remote Control Panel, Dummy Weight for Test Launch.
